Precise, Durable & Efficient Cartridge Heaters Customized For Your Needs
Get Factory Price Start From 30 PCS
Complimentary logo printing services and OEM support provided.

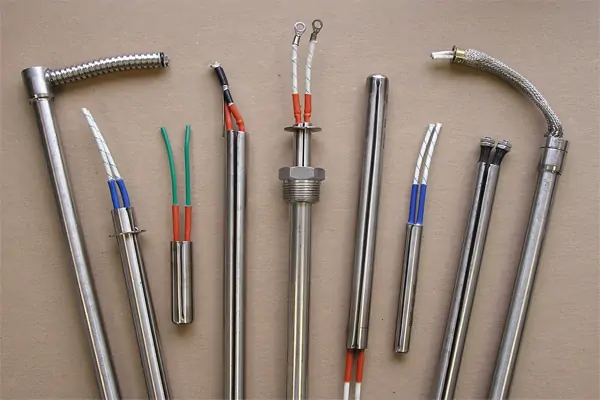

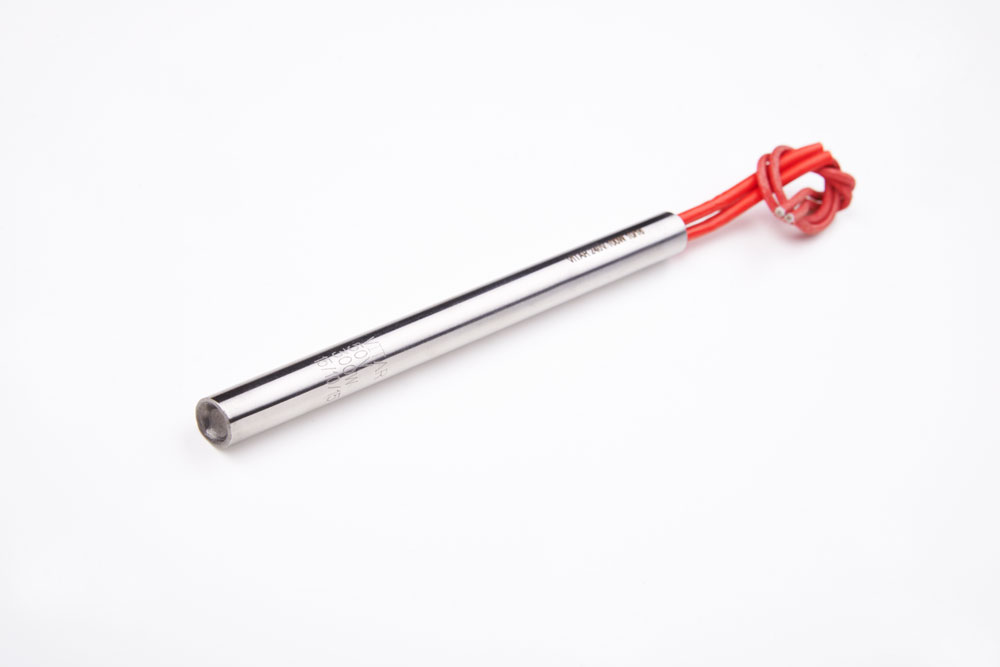

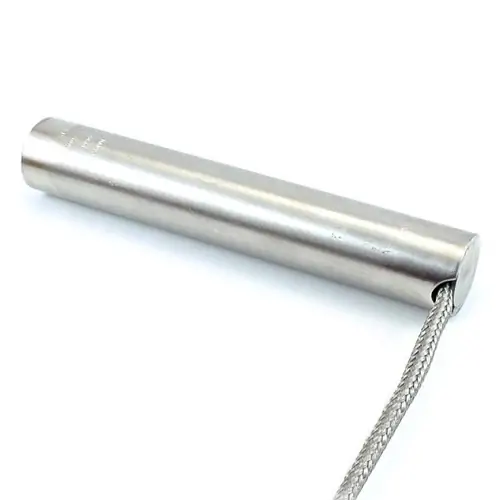

Our Cartridge Heaters
High-Density Cartridge Heaters
Definition: Designed for rapid heat transfer with high wattage per unit area.
Power Density: ≥100 W/in² (≥15.5 W/cm²).
Voltage: 120V, 240V, or custom.
Materials: Durable alloys (e.g., Incoloy sheath) to withstand thermal stress.
Applications: Injection molding, die casting, 3D printers.
Situations requiring fast heat-up times (<5 minutes).
Low-Density Cartridge Heaters
Definition: Optimized for steady, continuous heating with lower wattage distribution.
Power Density: ≤50 W/in² (≤7.75 W/cm²).
Voltage: Lower voltage options for delicate applications.
Materials: Stainless steel (SS304/SS316) for corrosion resistance.
Applications: Food processing, packaging machinery, medical equipment.
Long-duration processes require stable temperatures.
Metric Cartridge Heaters
Dimensions: Diameter: 4mm–25mm (common: 6mm, 8mm, 10mm).
Length: 20mm–500mm (standard: 40mm, 80mm, 120mm).
Hole Tolerance: Diameter ±0.01–0.02mm (tight fit for efficiency).
Regions: Widely used in Europe, Asia, and ISO-compliant industries.
Example: 8mm diameter × 60mm length, 400W, 240V.
Imperial (Inch-Size) Cartridge Heaters
Diameter: 1/8″–1″ (common: 1/4″, 3/8″, 1/2″).
Length: 1″–12″ (standard: 2″, 4″, 6″).
Hole Tolerance: ±0.001″–0.003″ for optimal thermal contact.
Regions: Predominant in North America and legacy machinery.
Example: 0.375″ diameter × 4″ length, 500W, 120V.

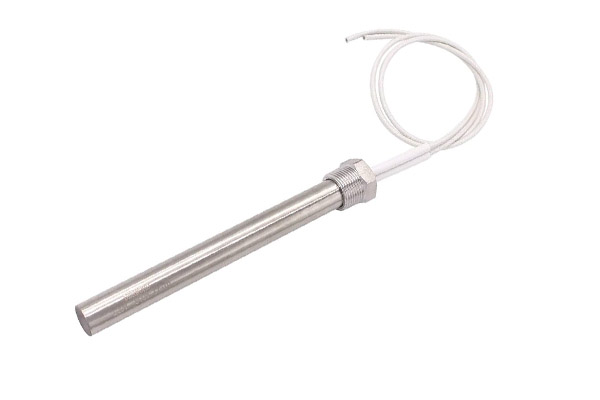

Immersion Cartridge Heaters
Definition: Designed to heat liquids or gases by direct immersion.
Power Density: 30–100 W/in² (4.65–15.5 W/cm²), depending on fluid type.
Materials: Corrosion-resistant sheath (SS316, Incoloy, titanium).
Safety Features: Double sealing, waterproof terminals, grounded elements.
Applications: Boilers, oil tanks, chemical processing, water heating.

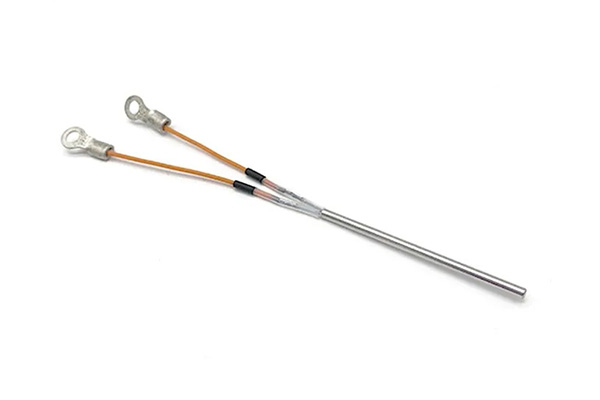

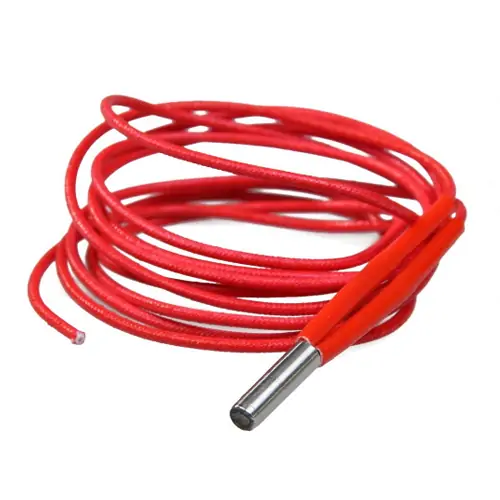

Micro Cartridge Heaters
Definition: Ultra-compact heaters for confined spaces or precision heating.
Diameter: 1–4 mm (metric) or 0.04″–0.16″ (imperial).
Voltage: 12V–48V (low-voltage for safety in sensitive systems).
Materials: Inconel sheath for high heat in small sizes.
Applications: Medical devices, semiconductor tools, aerospace sensors
Bolt-On Cartridge Heaters
Definition: Integrated with mounting flanges/brackets for easy installation.
Power Density: Medium (50–80 W/in² / 7.75–12.4 W/cm²).
Mounting: M4–M8 bolts or 1/4″–3/8″ threaded flanges.
Shape: Cylindrical or flat-faced for surface contact.
Applications: Plastic extrusion barrels, industrial ovens, HVAC systems.

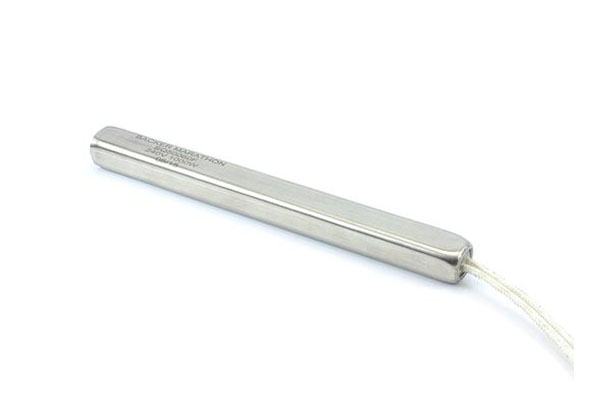

Rectangular Cartridge Heaters
Definition: Flat, block-shaped heaters for uniform heat distribution.
Dimensions: 5x10mm–20x50mm (metric) or 0.2″x0.4″–0.8″x2″(imperial).
Materials: Copper or brass housing for heat spreading.
Applications: Flat-press molds, packaging seals, lab equipment platens.
Custom Cartridge Heaters
Definition: Bespoke designs for unique applications.
Specifications:
Tailored Features: Non-standard diameters, bent shapes, multi-zone coils.
Materials: Exotic alloys (Hastelloy, ceramic coatings) for extreme conditions.
Voltage: Custom wattage/voltage configurations (e.g., 480V, three-phase).
Wide Range Of Industry Applications

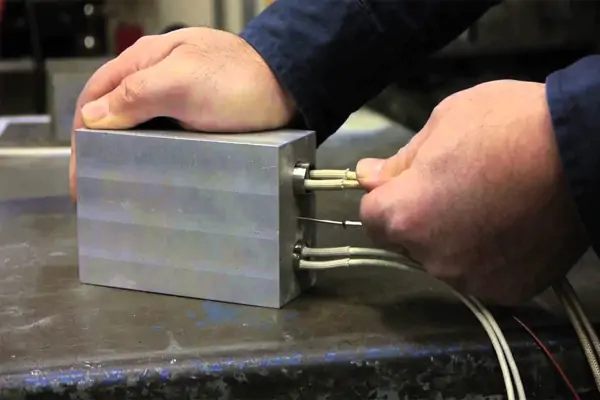

Mold heating
Packaging machinery
Medical equipment
3D printers
Semiconductor equipment
Food processing
Why Choose Elekheat
Custom Design
- Size & Shape: Customizable.
- Power & Voltage: Application-specific.
- Materials: Various options available.
- Mounting: Flexible.
Installation Assistance
Our experienced engineers provide comprehensive installation support to ensure smooth installation of heating elements.
No Minimum Order Quantity
Benefit from our flexible ordering, whether for one piece or thousands, ideal for start-ups and other businesses.
Expert Advice
Share your needs with us and our experts will propose the best heating element solution for your application.
For wholesalers: Wholesalers need large inventories, competitive prices, and stable quality. Leveraging our vast resources and state-of-the-art production capabilities, we offer premium-quality heating element products at market-friendly prices.
For contractors: Contractors need to deal with unique project needs and tight schedules. We provide custom solutions and adaptable manufacturing to ensure the success of every project.
For brand stewards: Brand leaders aim for unique products, consistent branding and high standards. With our team of experts, we manufacture heating element products that maintain brand integrity and quality.
For dealers: Dealers value stable inventory, variety and speed. Our extensive product range of heating elements and strong logistics links ensure fast and reliable shipping.

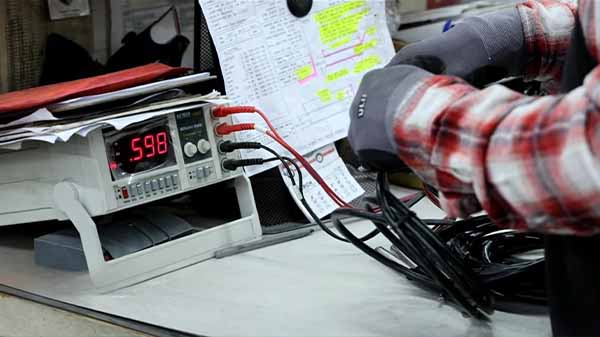

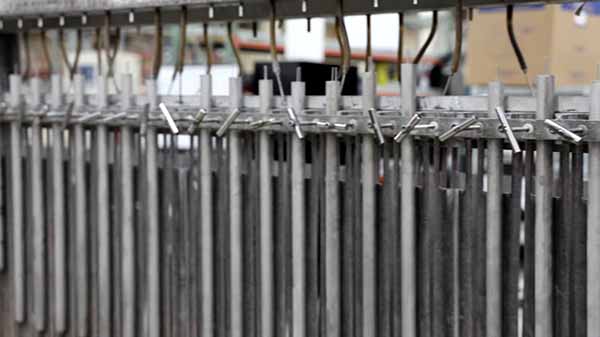

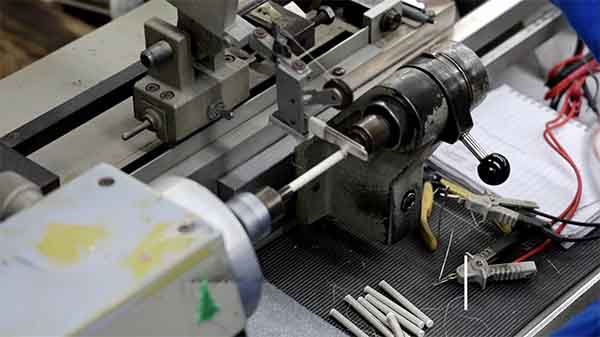

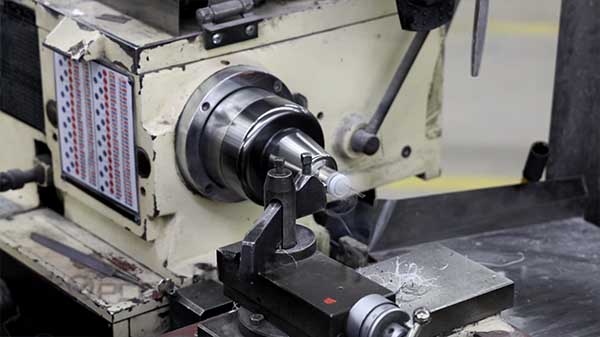

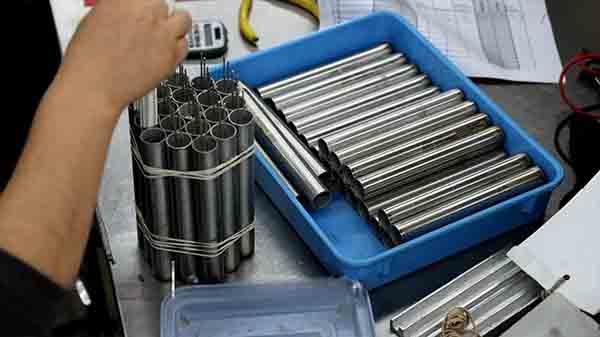

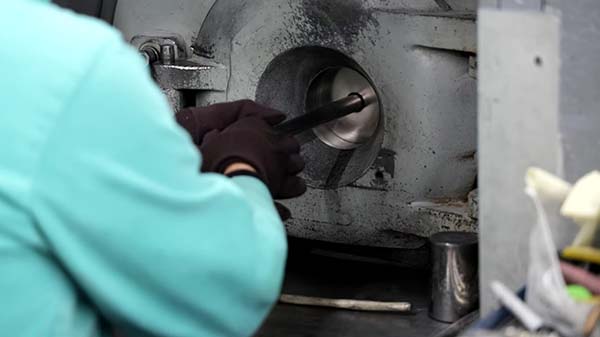

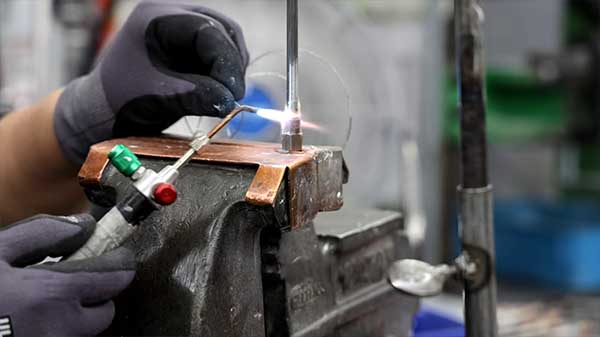

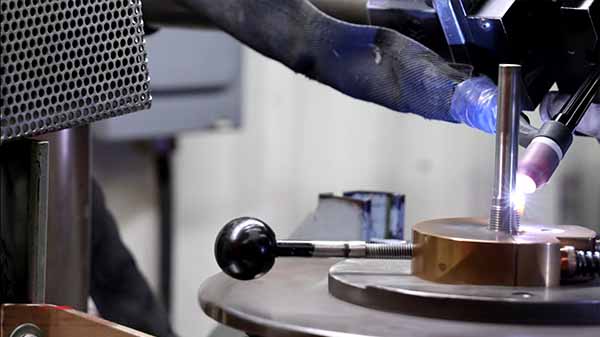

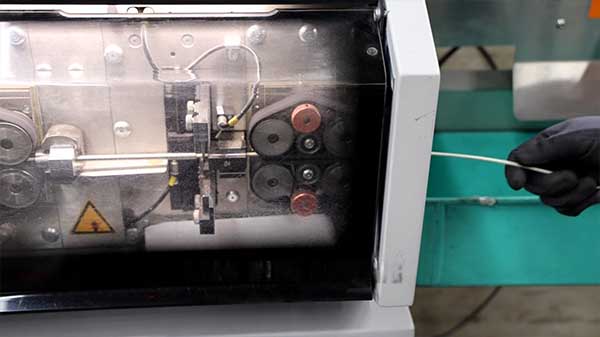

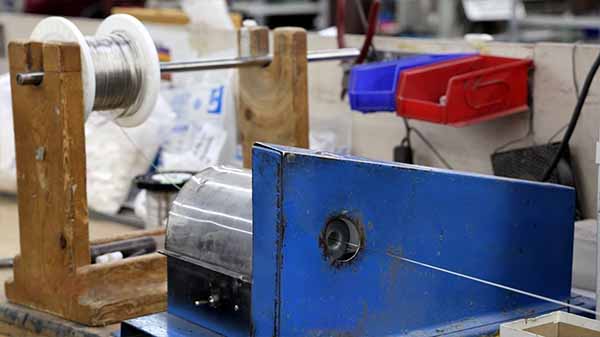

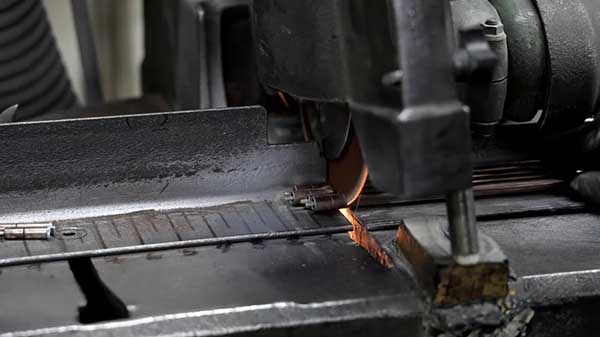

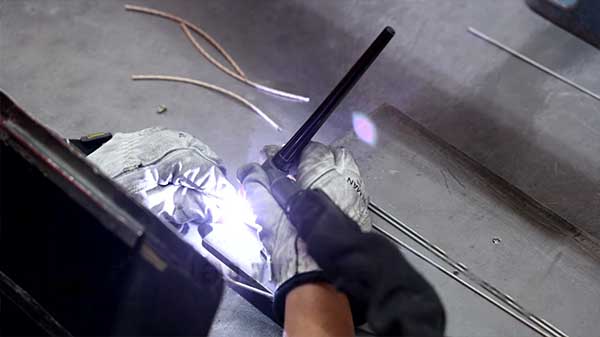

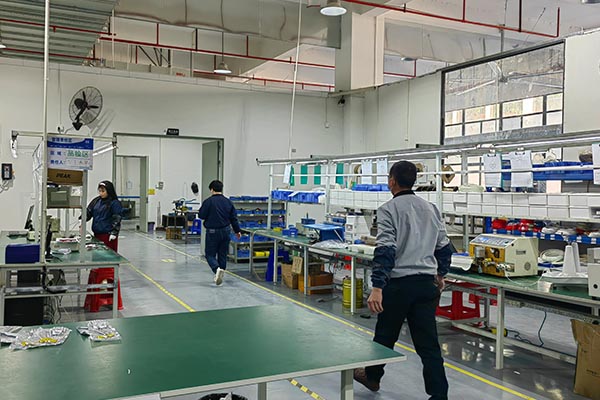

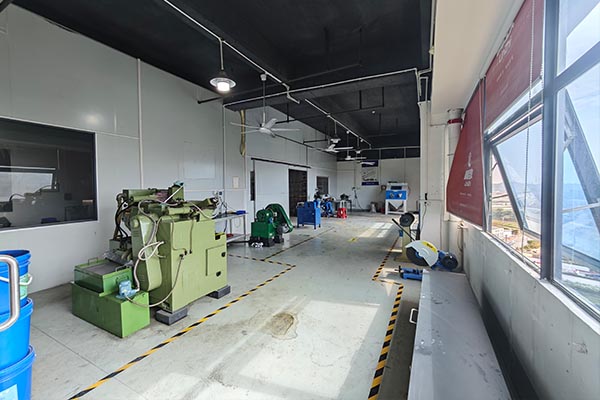

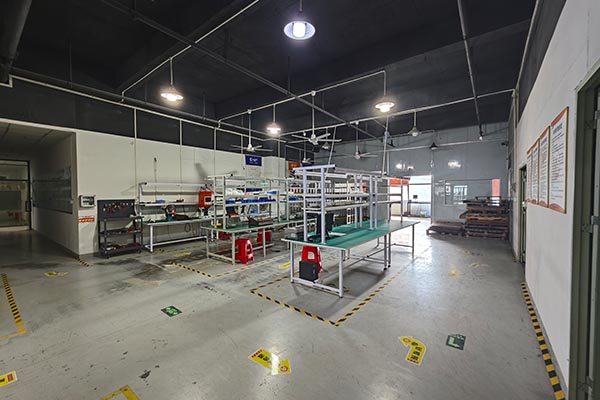

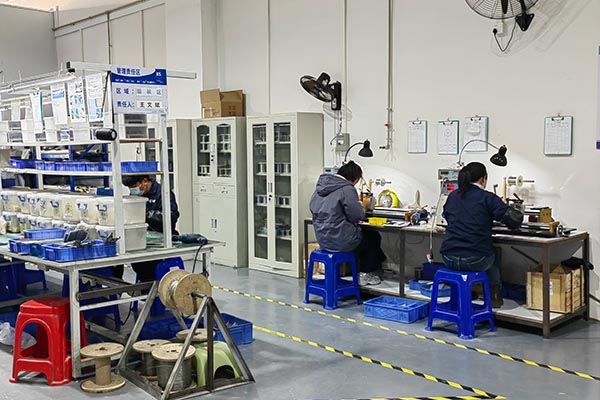

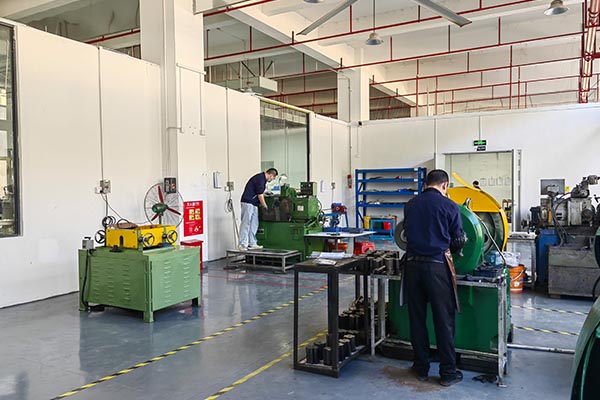

Production Process
Product Certification
“Within 5 Minutes, Get a Response from Our Customer Service!”
Need free samples for testing? Then contact us!
