The Essential Guide to Cartridge Heater Controllers
Key Insights for Precision Thermal Management
Cartridge heaters are vital for industrial heating, but their performance and lifespan depend entirely on the quality of their control system. An improper controller leads to heater failure, unstable processes, and wasted energy.
This guide provides the essential information for engineers and technicians to diagnose issues, select the right controller, and optimize their heating systems for maximum efficiency and reliability.
What is a Cartridge Heater Controller?

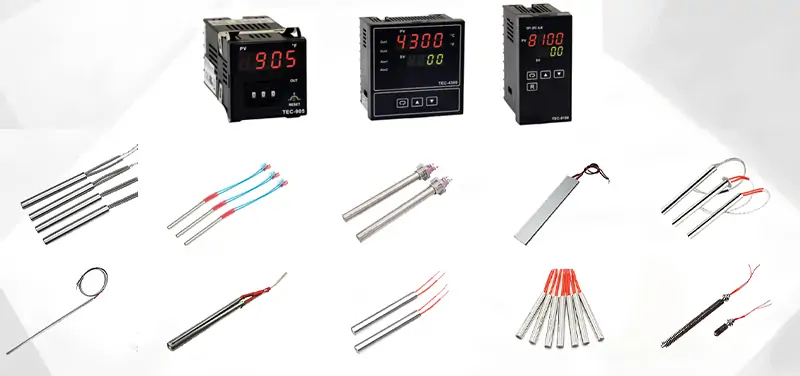

A cartridge heater controller is the brain of the heating system. Its fundamental job is to regulate the power flowing to the cartridge heater to accurately achieve and maintain a desired temperature.

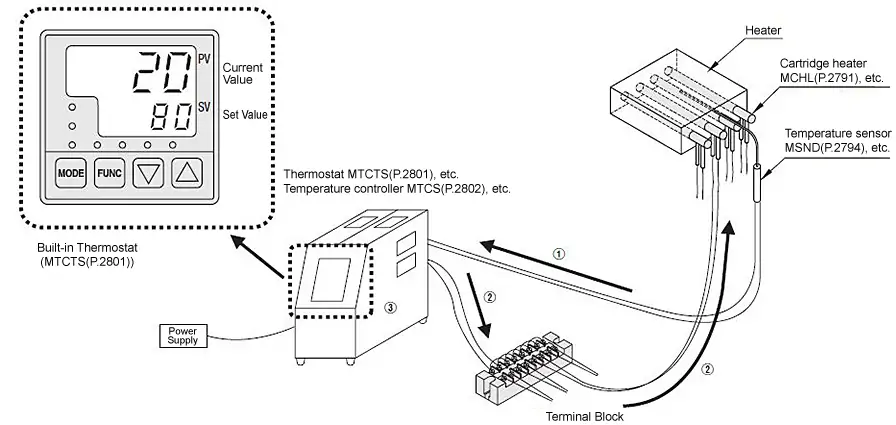

It works in a feedback loop: a temperature sensor (like a thermocouple) placed on the part being heated constantly sends temperature readings to the controller. The controller compares this reading to the target temperature (the setpoint) and calculates how much power the heater needs. It then precisely switches the power on and off to hold that temperature steady. Without a controller, a heater would run at 100% power continuously, leading to rapid overheating, equipment damage, and catastrophic failure.
Why Precise Temperature Control is Critical
Longer Heater Life & Higher ROI
Rudimentary on-off control causes thermal cycling, which stresses and destroys heaters. A precise PID controller delivers smooth power, drastically extending heater life and reducing downtime.
Consistent Product Quality
Stable temperature is essential for quality. A well-tuned control system prevents defects, reduces scrap, and ensures every part meets specification.
Lower Energy Costs
Poor control leads to temperature overshoot and wasted energy. A precise controller uses only the necessary power, lowering utility bills.
Troubleshooting Heater Failure
When a heater fails, the cause is almost always mechanical, not electronic. Before replacing the controller, investigate these common issues:
- Improper Fit: This is the #1 cause of failure. An air gap acts as an insulator, causing the heater to overheat and burn out.
- Contamination: Moisture or oil drawn into the heater can cause a short circuit.
- Incorrect Watt Density: Too much power for the application will destroy the heater.
- Incorrect Voltage: Applying 240V to a 120V heater quadruples its power output, causing instant failure.
- Lead Wire Damage: Frayed or damaged wires can cause shorts.
Controller Types: A Quick Comparison
On/Off Controllers
Simple and cheap, but they cause temperature swings and drastically shorten heater life. Only suitable for non-critical applications.

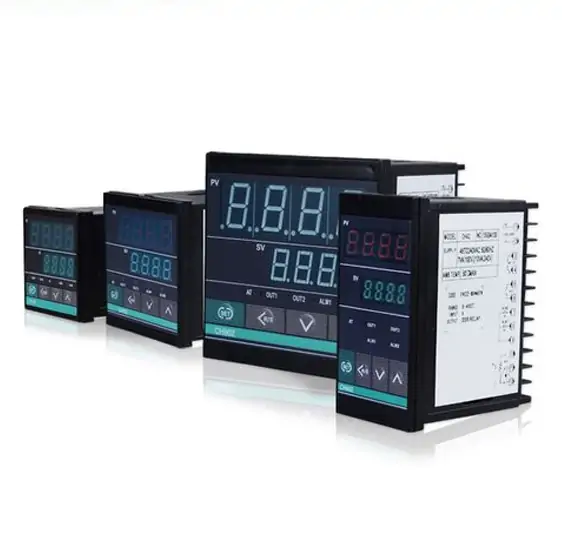

PID Controllers
The industry standard. PID controllers provide exceptionally stable and precise temperature, protecting the heater and ensuring process consistency.
Key Best Practices

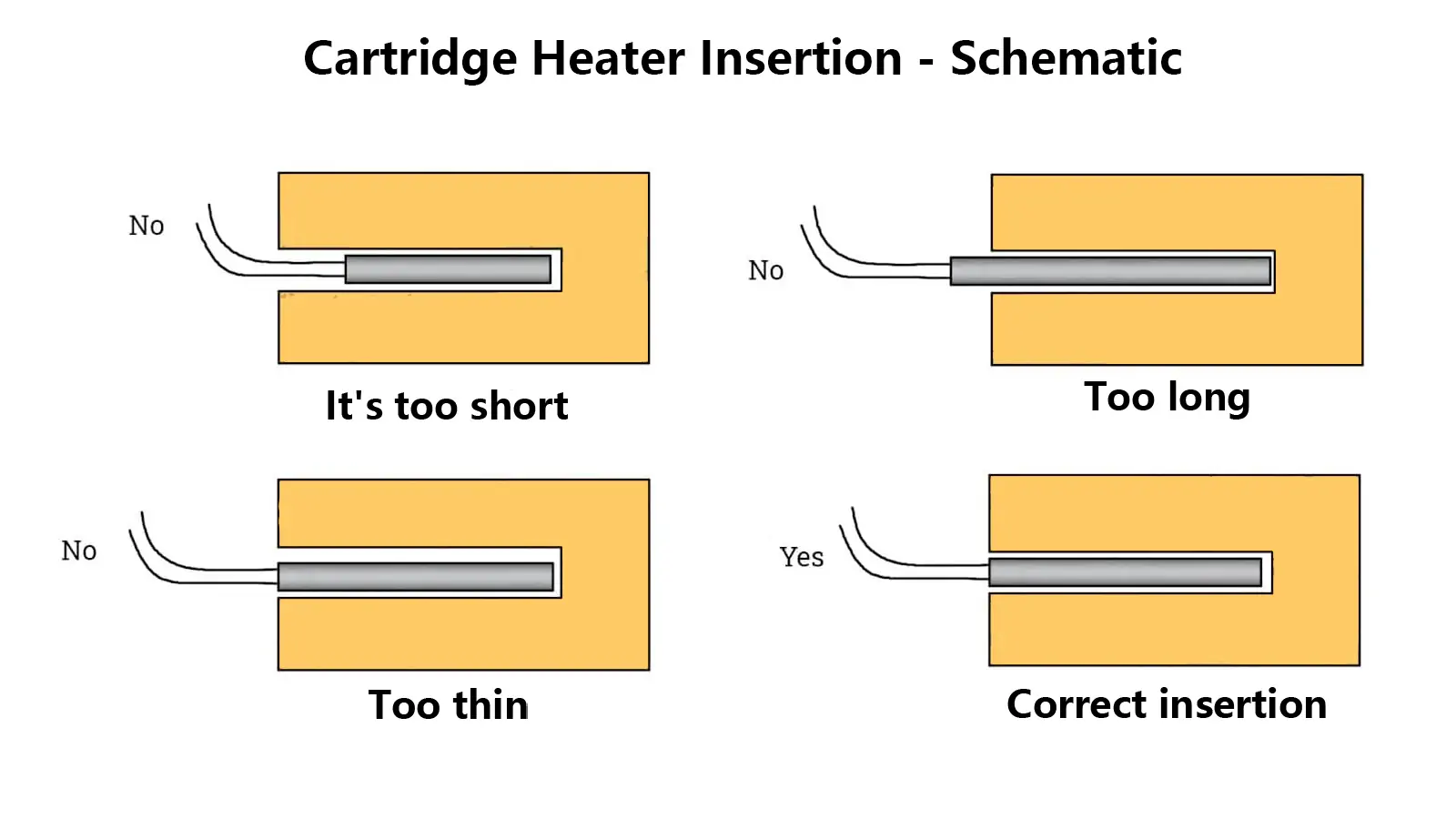

Ensure a Proper Bore Fit
A snug fit is the most critical factor for heater performance and life. Holes must be drilled and reamed to the correct tolerance.
| Heater Diameter | Max Reamed Hole |
|---|---|
| 1/4" (0.250") | 0.251" |
| 3/8" (0.375") | 0.377" |
| 1/2" (0.500") | 0.502" |
| 5/8" (0.625") | 0.628" |
| 3/4" (0.750") | 0.753" |
Use Your Controller's Auto-Tune Function
Modern PID controllers can automatically learn your system's thermal properties and calculate the optimal settings. This auto-tune function is the fastest and easiest way to achieve stable control.
Protect Heater Leads
The lead end is a common failure point. Protect wires from high heat, moisture, and physical damage by using protective sleeving and ensuring the heater is fully inserted.
Pro Tips for System Optimization
Master Sensor Placement
Place the sensor between the heater and the workpiece. This minimizes thermal lag—the delay between heat output and temperature detection—which is the primary cause of overshoot.
Understand the Hidden Costs of Failure
The cost of a failed heater isn't the part; it's the downtime. A heater that seizes in its bore due to overheating can take hours to drill out, costing thousands in lost production.
Use Multi-Zone Control for Large Parts
A single heater cannot evenly heat a large platen or mold. Use a multi-zone controller with multiple heaters and sensors to ensure a uniform temperature profile across the entire surface.
Leverage Soft-Start Functions
If a heater has been idle in a humid environment, use a controller's soft-start or ramp feature to slowly bake out absorbed moisture at a low temperature before applying full power. This prevents a common cause of startup failure.
Implement Overheat Protection
For critical processes, add an independent high-limit controller. This safety circuit will shut down the system if the main controller fails, preventing catastrophic overheating and equipment damage.
Frequently Asked Questions (FAQ)
What's the difference between a thermocouple and an RTD?
Thermocouples are versatile, rugged, and cost-effective, making them great for most applications. RTDs offer higher accuracy and stability but are more fragile and expensive. Choose a thermocouple unless your process requires extremely precise temperature measurement.
Why is my new heater burning out so quickly?
The most likely cause is a poor bore fit. If there's an air gap between the heater and the hole, it can't transfer heat effectively and will destroy itself from the inside out. See the "Key Best Practices" section and check your hole tolerances.
Can I use one controller for multiple heaters?
Yes, but only if they are heating a single, small, and thermally uniform zone. For larger or complex parts, you must use a dedicated controller channel and sensor for each heater (multi-zone control) to ensure even heating.
What does "auto-tuning" do?
Auto-tuning is a feature on modern PID controllers that automatically tests your heating system to determine its unique thermal properties. It then calculates the optimal P, I, and D values to provide stable control without overshoot, saving you the complex task of manual tuning.
