ELEKHEAT manufactures precision cartridge heaters for injection molding, hot runner systems, packaging machinery and industrial heating equipment. Custom diameters, lengths, voltages, wattages and termination options are available.
- Custom OEM Manufacturing
- Temperature Up To 800°C
- CE / RoHS Certified
- Engineering Support

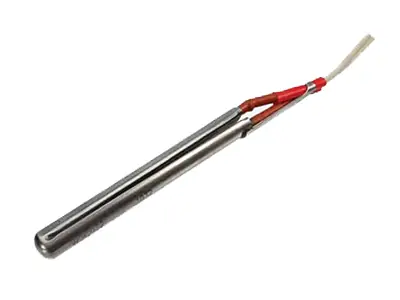

Comprehensive Range of Industrial Cartridge Heaters.
Comprehensive Range of Industrial Cartridge Heaters
Designed for rapid heating and high temperature applications requiring maximum heat output in limited spaces.
Low Watt Density Cartridge Heaters
Ideal for applications requiring stable temperature control, longer service life, and reduced surface loading.

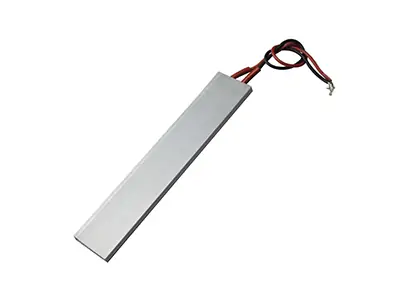

Square Cartridge Heaters
Providing excellent heat transfer performance for molds, dies, sealing machines, and industrial equipment.

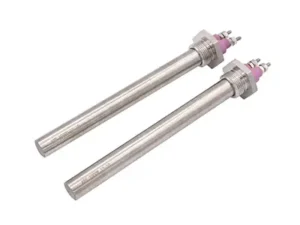

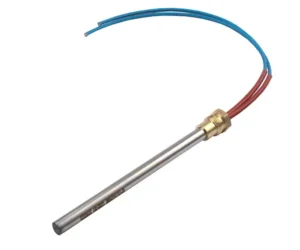

Threaded Cartridge Heaters
Designed with threaded connections for secure installation and efficient heat transfer in industrial systems.
Metric Cartridge Heaters
Manufactured with standard metric diameters for European molds, dies, and precision industrial heating applications.
Immersion Cartridge Heaters
Engineered for direct liquid heating applications including oil tanks, chemical containers, and process equipment.

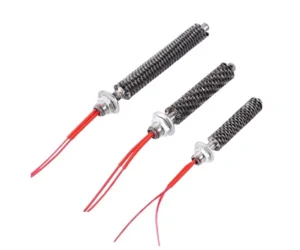

Finned Cartridge Heating Elements
Extended surface design improves heat transfer efficiency for air heating and specialized industrial applications.

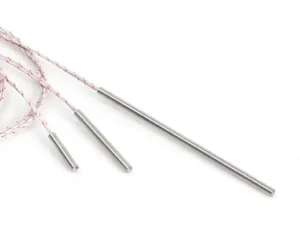

Miniature Cartridge Heaters
Compact heating solutions designed for small equipment, precision instruments, and limited installation spaces.

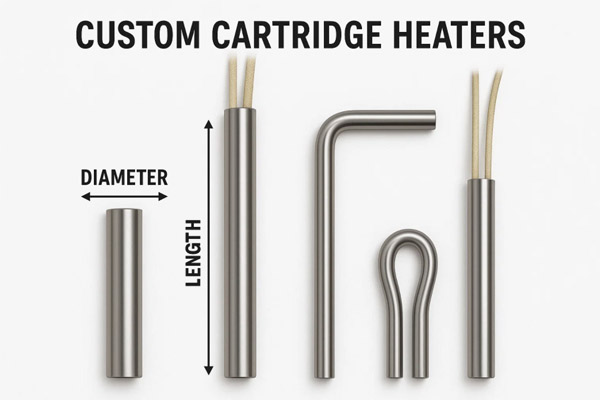

Custom Cartridge Heaters
Fully customized cartridge heaters with tailored dimensions, voltage, wattage, materials, and lead configurations.
We provide a full cartridge heater size selection to match industry-standard and custom-designed equipment.
Diameters

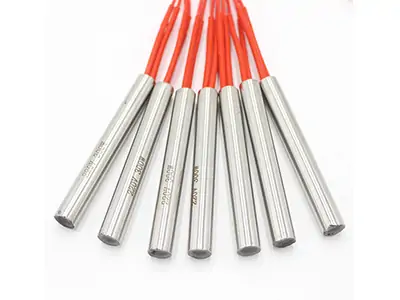

Standard: 6mm cartridge heater, 8mm, 10mm, 12.5mm
Imperial: 1/8”, 1/4”, 3/8”, 1/2”, 5/8”, 3/4”
Custom diameters available upon request
Length Range
20 mm – 1500 mm (depending on diameter)
Voltage Options
12V / 24V / 48V / 110V / 120V / 220V / 230V / 380V
Watt Density Levels
- Low watt density
- Standard watt density
- High watt density (up to 40 W/cm²)

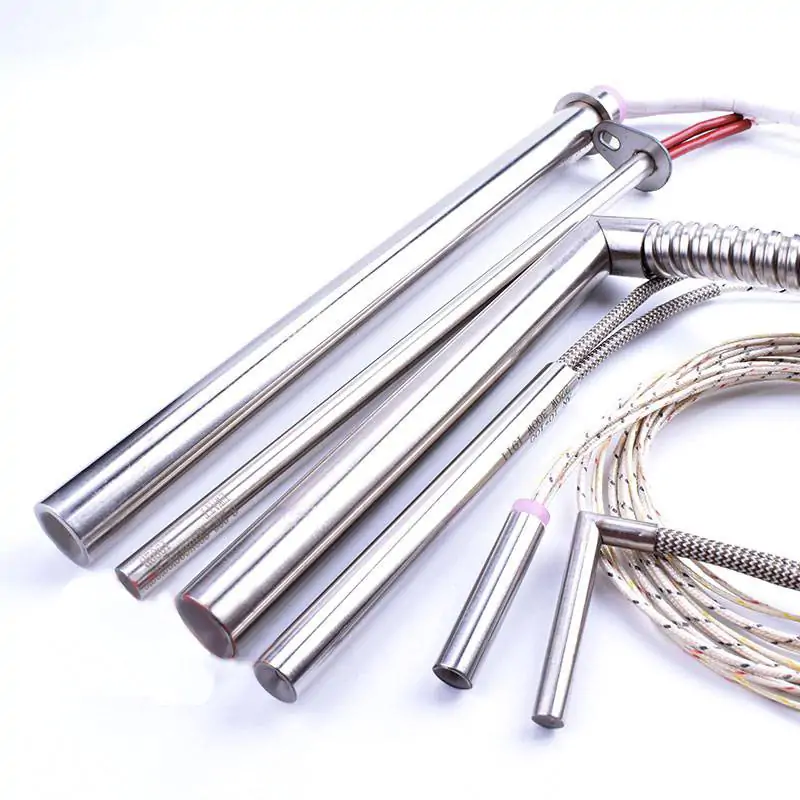

Custom Cartridge Heater Solutions
From standard cartridge heaters to high-density designs, ELEKHEAT provides engineered heating solutions for demanding industrial applications.

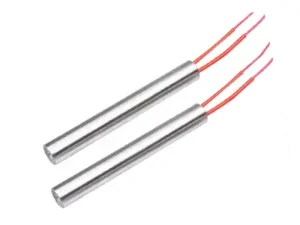

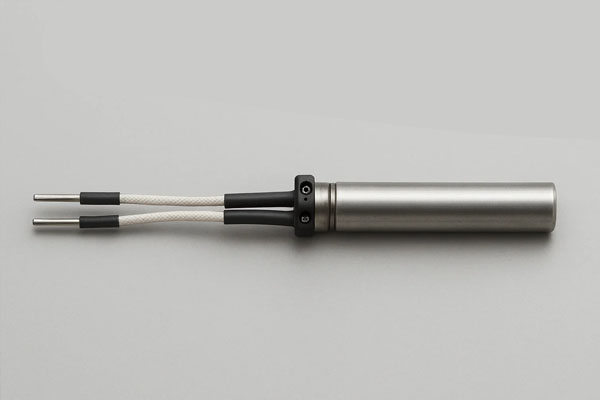

Standard Cartridge Heater
Reliable heating elements for molds, dies and general industrial equipment.

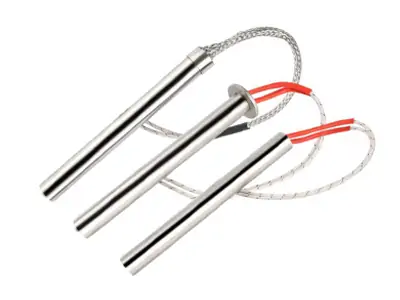

High Density Cartridge Heater
High compressed MgO insulation and precision swaging for high temperature applications.

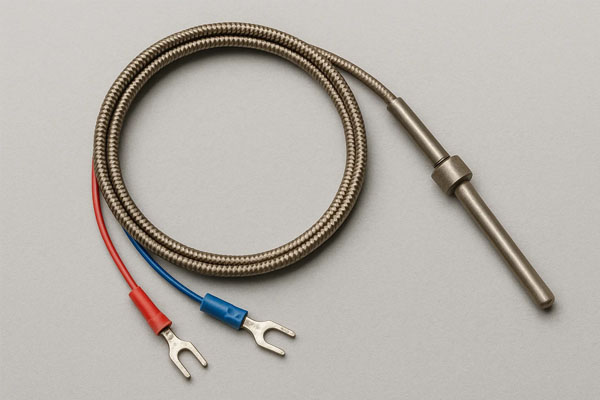

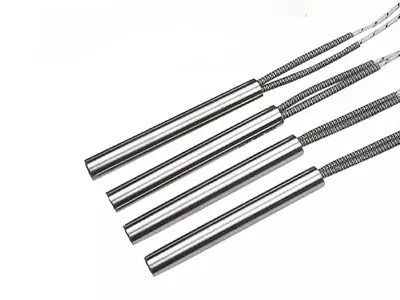

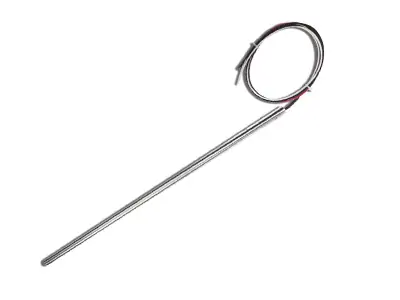

Cartridge Heater With Thermocouple
Integrated J/K thermocouple options for accurate temperature control.
Custom Cartridge Heater
OEM manufacturing according to drawings, voltage and installation requirements.
Cartridge Heater Internal Construction
A reliable cartridge heater requires precise internal construction. ELEKHEAT uses high purity MgO insulation, nickel chromium resistance wire and controlled compression technology to achieve efficient heat transfer and long service life.

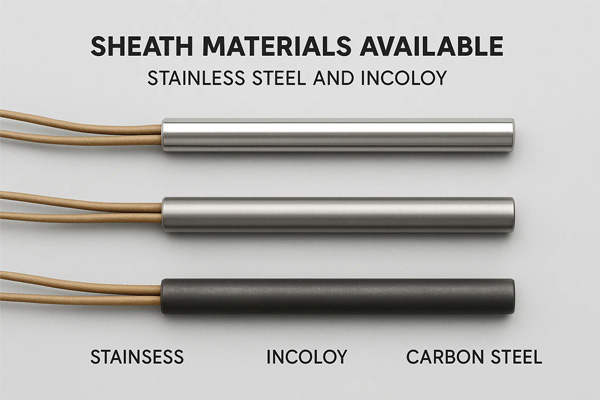

- Stainless Steel Sheath
304 / 316 stainless steel and Incoloy options available. - NiCr Resistance Wire
Stable electrical performance under high temperature conditions. - High Purity MgO Insulation
Excellent electrical insulation and thermal conductivity. - Sealed End Construction
Protects heater from moisture contamination.
Cartridge Heater Lead & Termination Options
Different lead configurations are available for various industrial installation environments.

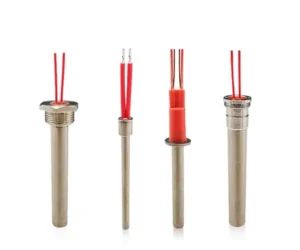

Swaged-in Flexible Leads
Standard electrical connection solution for general industrial applications.
Right Angle Leads
Designed for compact equipment where installation space is limited.
Stainless Steel Armor Cable
Provides mechanical protection in harsh industrial environments.
Threaded Screw Plug
Suitable for liquid heating and threaded mounting applications.
Cartridge Heater Technical Specifications
| Parameter | Specification |
|---|---|
| Diameter | 6mm – 50mm Custom |
| Length | 20mm – 2000mm Custom |
| Voltage | 12V – 480V |
| Power | 50W – 5000W+ |
| Sheath Material | SS304 / SS316 / Incoloy 800 |
| Maximum Temperature | Up to 800°C |
Cartridge Heater Installation Guidelines
Proper installation improves heat transfer efficiency and prevents premature heater failure.
| Heater Diameter | Recommended Hole Size | Clearance |
|---|---|---|
| 6mm | 6.05 – 6.10mm | 0.05 – 0.10mm |
| 8mm | 8.05 – 8.15mm | 0.05 – 0.15mm |
| 10mm | 10.05 – 10.15mm | 0.05 – 0.15mm |
| 12mm | 12.05 – 12.15mm | 0.05 – 0.15mm |
| 16mm | 16.05 – 16.15mm | 0.05 – 0.15mm |
Excessive clearance creates air gaps between the heater and bore, reducing heat transfer efficiency and increasing the risk of overheating.
Cartridge Heater Watt Density Calculator
Cartridge Heater Watt Density Guide
< 5 W/cm²
Low watt density. Suitable for sensitive heating applications and extended heater life.
5 – 15 W/cm²
Standard range for molds, dies and general industrial heating.
15 – 30 W/cm²
High density design for fast heating applications with good heat transfer.
> 30 W/cm²
High performance swaged cartridge heater required. Ensure proper installation.
Cartridge Heater Applications
Injection Molding
Used for molds, dies, hot runner systems and nozzle heating.

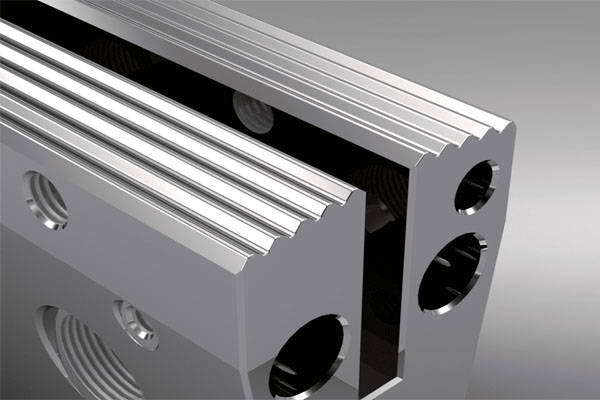

Packaging Machinery
Provides precise heating for sealing, cutting and forming equipment.
Plastic Processing
Suitable for extrusion machines, molding equipment and thermal systems.
Medical Equipment
Reliable heating solution for laboratory and precision equipment.
Quality Testing & Inspection
Every heater undergoes rigorous cartridge heater testing, including
Insulation resistance test

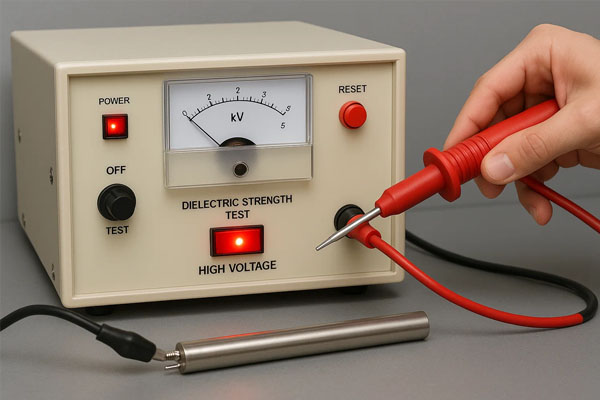

Dielectric strength test
High-temperature burn-in
Resistance & wattage verification
Dimensional accuracy inspection
Lead integrity validation
These quality checks guarantee safe operation and stable long-term performance.
Tailored to Your Specifications: Custom Cartridge Heaters.
We understand that standard products cannot fulfill all application needs. We specialize in providing custom cartridge heaters, transforming your unique requirements into highly efficient heating solutions. Our customization options include:
Size and Shape
Diameter, length, and specific geometries for any cartridge heater element can be customized.
Wattage and Voltage
Precisely matched to your process requirements, from low to high wattage settings.
Material Selection
Offering a variety of sheath materials, such as stainless steel and Incoloy, to suit diverse operating conditions.
Lead Wire Type and Length
Adapting to various installation and electrical connection demands.
Integrated Sensors
Options for cartridge heater with built-in thermocouple or other sensors for seamless temperature monitoring.

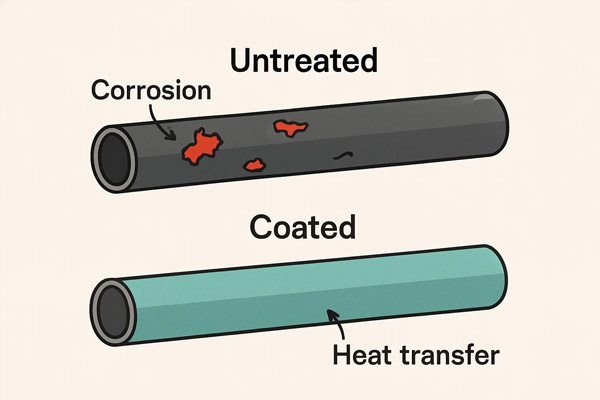

Special Coatings and Surface Treatments
