Explosion-Proof Heaters from ELEKHEAT
Advanced Heating Solutions for Hazardous Environments
Explosion-proof heaters are made to work safely in dangerous environments. They have strong, sealed housings to prevent sparks or heat from causing fires. These heaters are commonly used in oil and gas, chemical plants, and mining industries.
Key Features of ELEKHEAT Explosion-Proof Heaters
Certified Safety: These heaters meet safety standards like ATEX and IECEx.
Durable Build: We use materials like stainless steel to make them strong and long-lasting.
Efficient Heating: The heaters distribute heat evenly and save energy.
Customizable Options: We can adjust the design to match your needs.
Easy Installation: These heaters are simple to set up and use.
Where to Use Explosion-Proof Heaters
Oil and Gas: Heating pipelines, tanks, and offshore equipment
Chemical Plants: Heating reactors and tanks in risky zones
Mining: Heating in underground areas
Pharmaceuticals: Keeping temperatures stable in sensitive environments
Food Processing: Safe heating in areas with flammable dus
Duct type explosion-proof unit heater
| kw | LxWxH(mm) | LxWxH(mm) | KGS | |
| 30 | 800x500x500 | < 3W/cm² | 1350x500x500 | 120 |
| 60 | 1000x500x500 | < 3W/cm² | 1350x550x550 | 180 |
| 100 | 1000x700x700 | < 3W/cm² | 2300x600x900 | 260 |
| 200 | 1200x800x800 | < 3W/cm² | 3000x650x1000 | 350 |
| 300 | 1450x900x900 | < 3W/cm² | 3200x750x1050 | 450 |
| 400 | 1500x1000x1000 | < 3W/cm² | 3500x800x1150 | 540 |
| 600 | 2200x1000x1000 | < 3W/cm² | 3500x850x1200 | 650 |
| kw | ФxL(mm) | LxWxH(mm) | KGS | |
| 5 | Ф133×1000 | < 3W/cm² | 1350x500x500 | 80 |
| 10 | Ф159×1000 | < 3W/cm² | 1350x550x550 | 120 |
| 50 | Ф219×1800 | < 3W/cm² | 2300x600x900 | 260 |
| 100 | Ф273×2500 | < 3W/cm² | 3000x650x1000 | 350 |
| 200 | Ф325×2700 | < 3W/cm² | 3200x750x1050 | 450 |
| 300 | Ф426×3000 | < 3W/cm² | 3500x800x1150 | 540 |
| 400 | Ф480×3000 | < 3W/cm² | 3500x850x1200 | 650 |

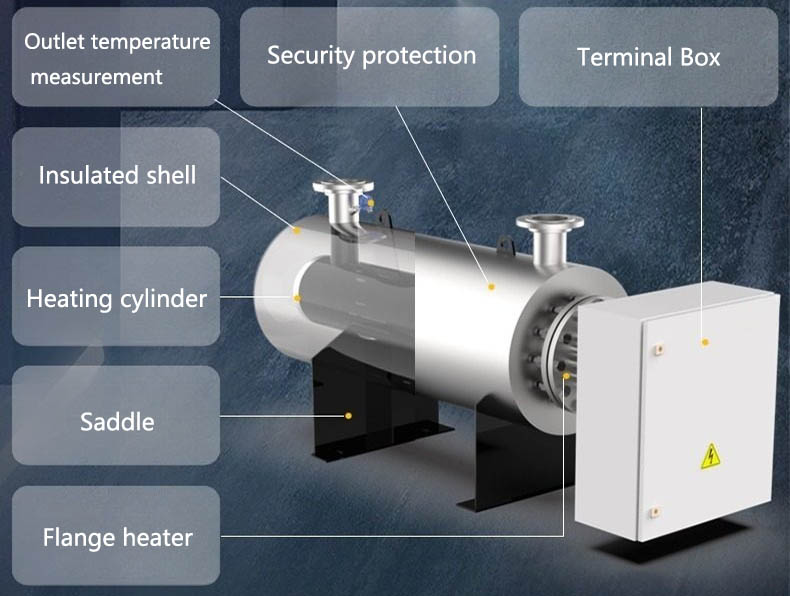

Flange Heater
| kw | Flange/mm | Specifications/mm | LxWxH(mm) | KGS |
| 36 | DN200 | 12-Ф12×1100 | 1400x340x340 | 50 |
| 60 | DN200 | 15-Ф12×1400 | 1700x340x340 | 70 |
| 90 | DN250 | 24-Ф12×1700 | 2000x405x405 | 120 |
| 125 | DN250 | 27-Ф12×1900 | 2200x405x405 | 160 |
| 150 | DN250 | 27-Ф12×2100 | 2400x405x405 | 200 |
| 250 | DN350 | 39-Ф12×2800 | 3200x520x520 | 280 |

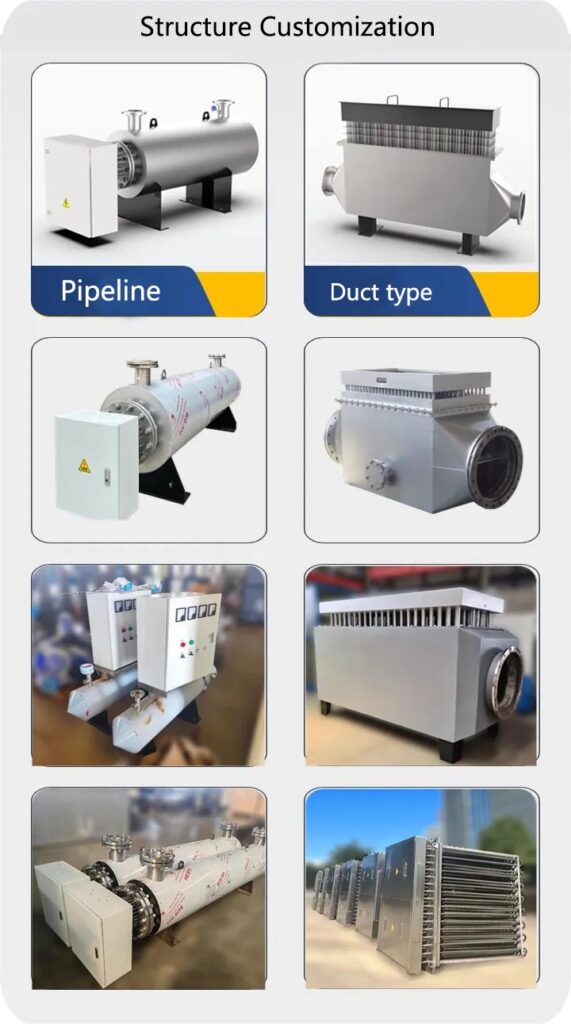

Custom Explosion-Proof Heater Design
Explosion-proof heaters need to be customized to ensure safety and efficiency. At ELEKHEAT, we design heaters to match your exact needs. Our goal is to create safe and reliable solutions for hazardous environments.
Designed for Your Work Environment
Every industry has different needs. We create heaters that fit your specific conditions. Whether you work in oil, gas, or chemical plants, we can help. Our team designs products based on your temperature, pressure, and safety requirements.
Built for Safety and Durability
We use strong materials like stainless steel to make our heaters last. Our products follow strict safety standards, such as ATEX and IECEx certifications. Every heater we make is designed to reduce risks. From the outer casing to the internal components, we focus on safety.
Made to Fit Your Specifications
We offer many options to meet your needs. These include power levels, voltage types, and mounting styles. Whether you need a heater for liquids, air, or tanks, we can customize it. Our goal is to make sure the heater works perfectly with your system.
Work with Us for Safe Heating
At ELEKHEAT, we want to be more than just a supplier. We want to be a partner you can trust. We listen to your needs and challenges to provide the right solution. Contact us today to learn how we can help you with your project.
