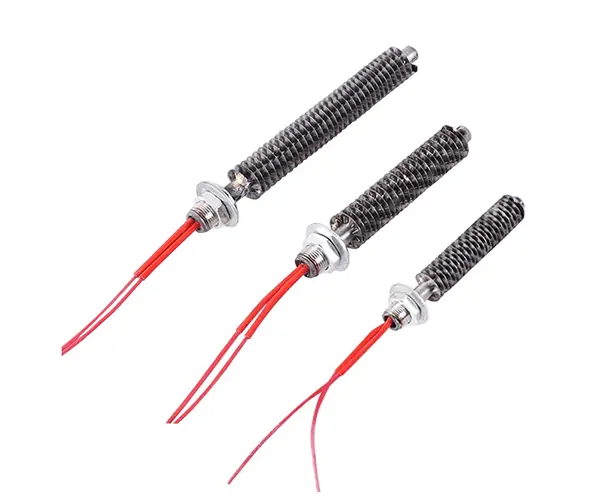

Finned Cartridge Heater
High-Efficiency Forced Air Heating Solution
Our Finned Cartridge Heaters are engineered for superior heat transfer in forced air applications. The continuous fins are furnace-brazed to the sheath, maximizing surface area for rapid and efficient heat dissipation into the air stream.
- Rapid Heat Transfer
- Customizable Options
- Durable Construction
- Long Operational Life
Product Details
Parameter | Value |
---|---|
Voltage | 120V, 240V, 480V (Custom voltages available) |
Wattage | Up to 75 W/in² (Watt Density) |
Sheath Material | Stainless Steel 304, 316, Incoloy® |
Fin Material | Aluminized Steel or Stainless Steel |
Maximum Temperature | Up to 1200°F (650°C) |
Diameter | 1/4″ to 1″ (and metric equivalents) |
Lead Terminations | Teflon®, Fiberglass, Straight Pin, Right Angle |
Specifications are typical. Final values depend on configuration and tolerances requested.
HVAC Systems: Used in duct heaters, air handling units, and other components of heating, ventilation, and air conditioning systems to provide supplemental or primary heat.
Industrial Ovens and Furnaces: Employed in drying, curing, and annealing processes where forced air circulation is used to achieve uniform temperature distribution.
Load Banks: Used to test power sources such as generators and uninterruptible power supplies (UPS) by dissipating electrical energy as heat into an airstream.
Food Processing: Utilized in commercial ovens, proofing cabinets, and dehydration equipment where controlled air heating is crucial for product quality.
Plastics Industry: Applied in preheating plastic pellets or sheets before processing and in curing and drying applications.
Packaging Machinery: Used for heat shrinking, sealing, and drying processes on packaging lines.
Textile Industry: Employed in drying and curing ovens for fabrics and dyes.
Paint and Coating Curing: Utilized in ovens to accelerate the drying and curing of paints, lacquers, and other coatings.
Get Pricing
FAQ
The fins dramatically increase the heater's surface area, which allows for much faster and more efficient heat transfer into the air stream. This makes them ideal for forced air and convection heating applications where quick temperature response is needed.
Higher air velocity improves heat dissipation from the fins, allowing the heater to run at a higher watt density without overheating. It's crucial to operate the heater within its specified air velocity range to ensure optimal performance and longevity.
