Finned Heating Element Manufacturer
OEM | Customized | MOQ: 5000 Pieces

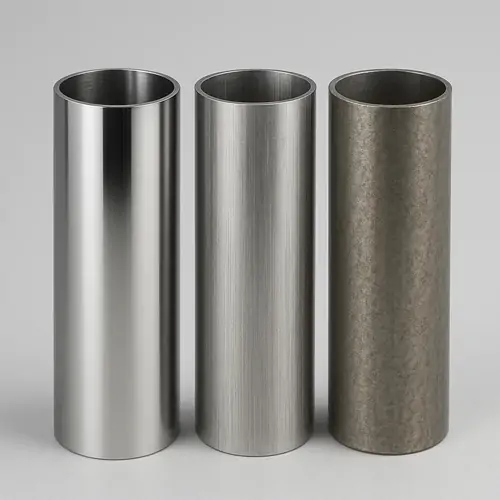

1.Sheathed Elements: Steel, stainless steel, copper, and Incoloy available;
2.Maximum Sheath Temperature:
750°F (400°C) – Steel
900°F (480°C) – ST.ST./INCOLY
Application Areas
1.Air conditioning equipment
2.Home heating equipment
3.Dishwasher
4.Dryer,
5.Plastic machinery

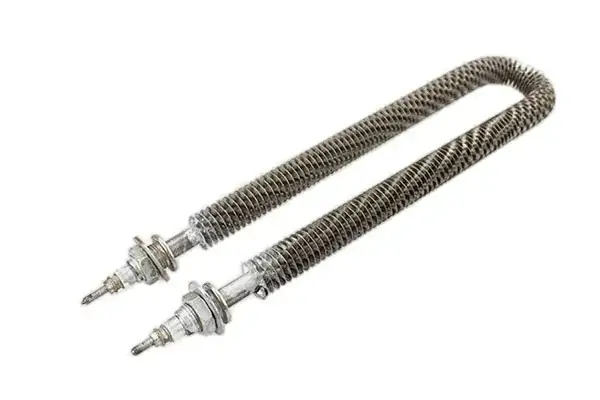

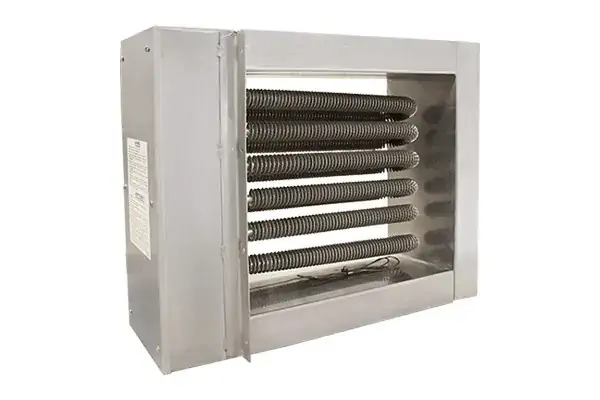

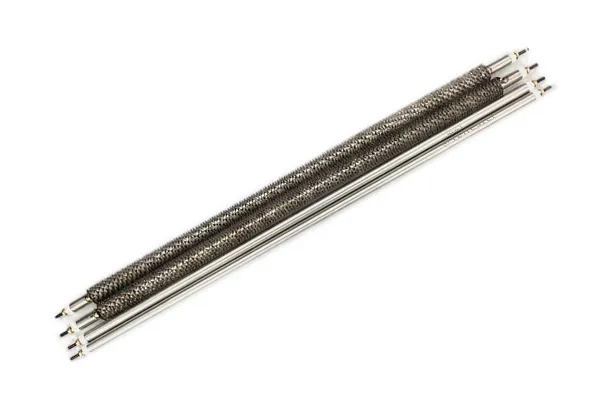

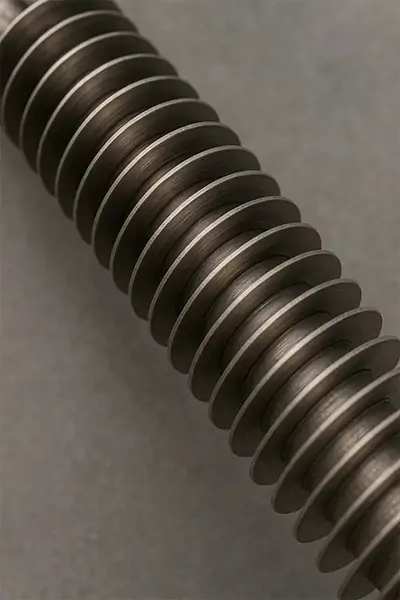

ELEKHEAT offers safe and efficient finned heaters in stainless or carbon steel tubing that heat air noiselessly, efficiently, and economically. Different pipe diameters and fin sizes are available to meet customer needs.
Diameter: | .315 | |
|---|---|---|
Maximum Amperage: | 30 | |
Sheath Length | Cat. No. | Wattage |
12″ | FT31-12 | 530 |
15″ | FT31-15 | 700 |
24″ | FT31-24 | 1250 |
36″ | FT31-36 | 1960 |
48″ | FT31-48 | 2675 |
60″ | FT31-60 | 3385 |
72″ | FT31-72 | 4100 |
96″ | FT31-96 | 5500 |
Diameter: | .440 | |
|---|---|---|
Maximum Amperage: | 40 | |
Sheath Length | Cat. No. | Wattage |
12″ | FT44-12 | 750 |
15″ | FT44-15 | 1175 |
24″ | FT44-24 | 1725 |
36″ | FT44-36 | 2725 |
48″ | FT44-48 | 3725 |
60″ | FT44-60 | 4725 |
72″ | FT44-72 | 5700 |
96″ | FT44-96 | 7700 |
Features

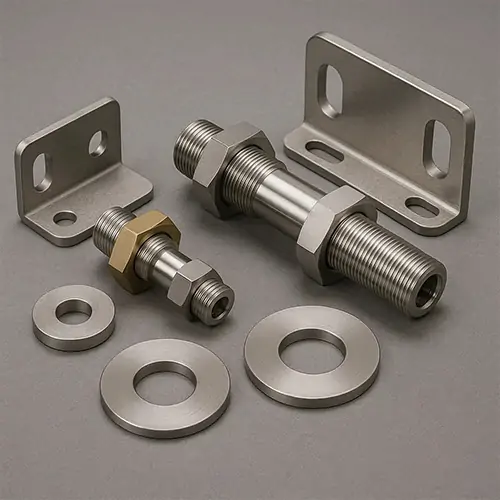

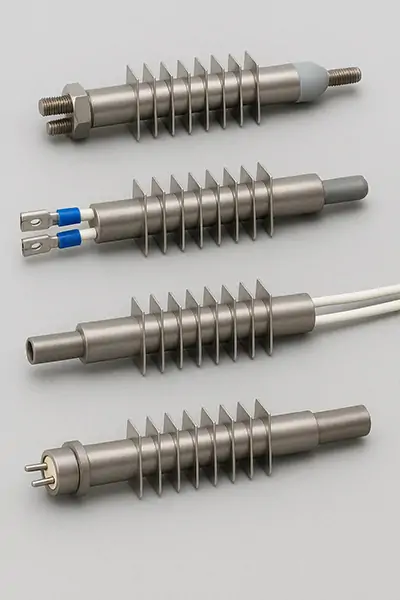

1. With/without flanges, various types of flanges, convenient selection for customers

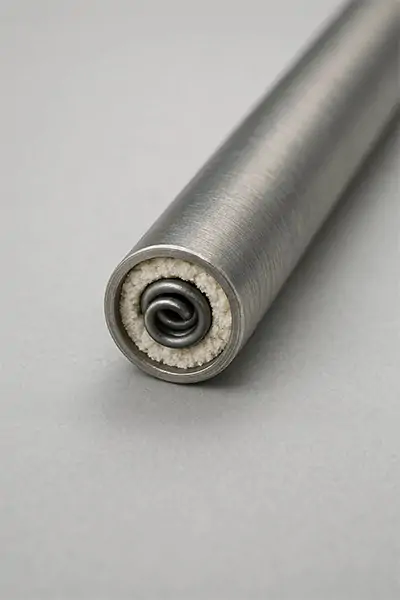

2. Electric heating wire is centeredexcellent insulation and voltage resistance
3. Magnesium powder is dense, and heat distribution is uniform
4. The pipes are treated with solution in a unique protective atmosphere and have excellent corrosion resistance
5. A variety of mature welding processes, laser welding, plasma welding, brazing, argon arc welding, high-frequency welding, and resistance welding, to meet the different needs of customers
