Industrial Ovens
Elekheat offers an extensive selection of industrial ovens that meet diverse manufacturing requirements and deliver consistent, efficient heating. Our range includes batch ovens, conveyor ovens, and custom-engineered solutions with temperatures ranging from ambient to 500°C. With a variety of sizes and configurations available, customers are able to find the right oven for their specific application.
These high-quality ovens not only provide dependable performance but they also have features like precise temperature control and uniform airflow which makes them perfect for heat treating, drying, curing, and other industrial processes. Elekheat’s industrial oven range is developed specifically for industries like aerospace, automotive, and electronics manufacturing.
Furthermore, all our industrial ovens are built with safety features and comply with industry standards – meaning they can be used in demanding production environments – guaranteeing you’ll get the reliable and effective heat processing solution your project requires.

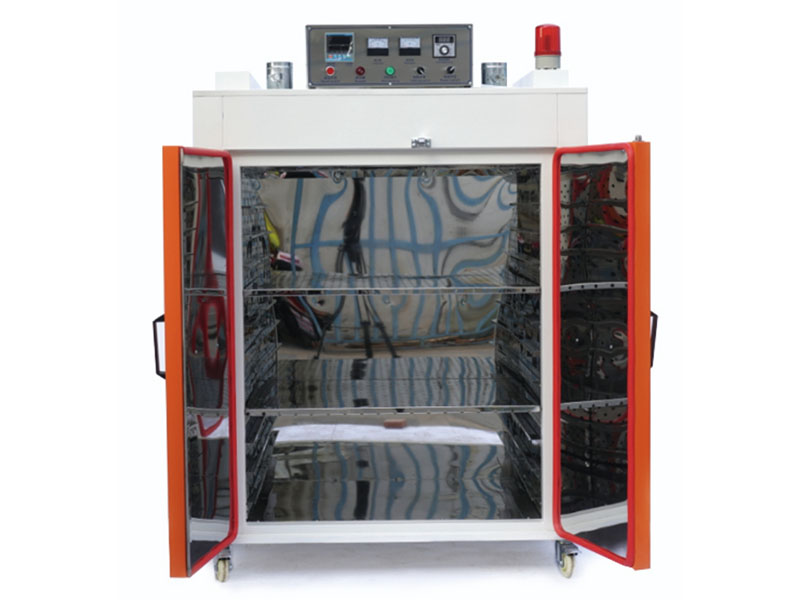

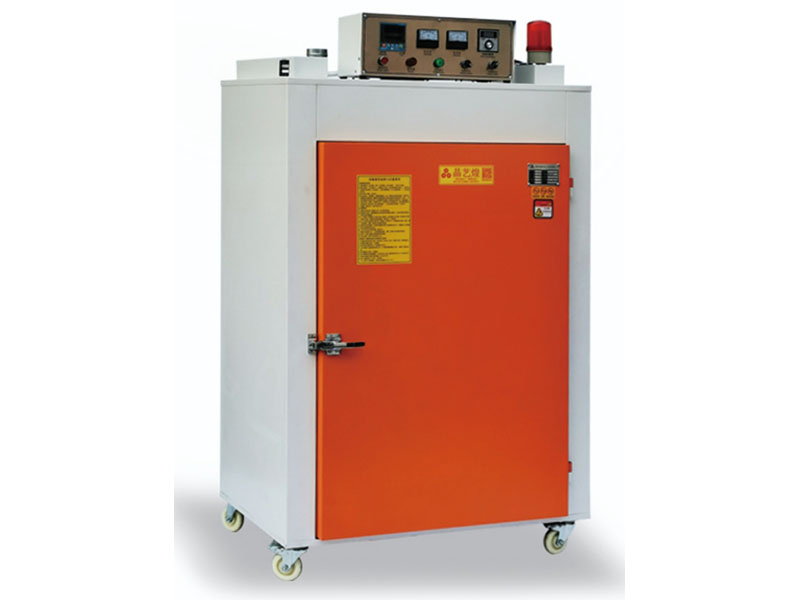

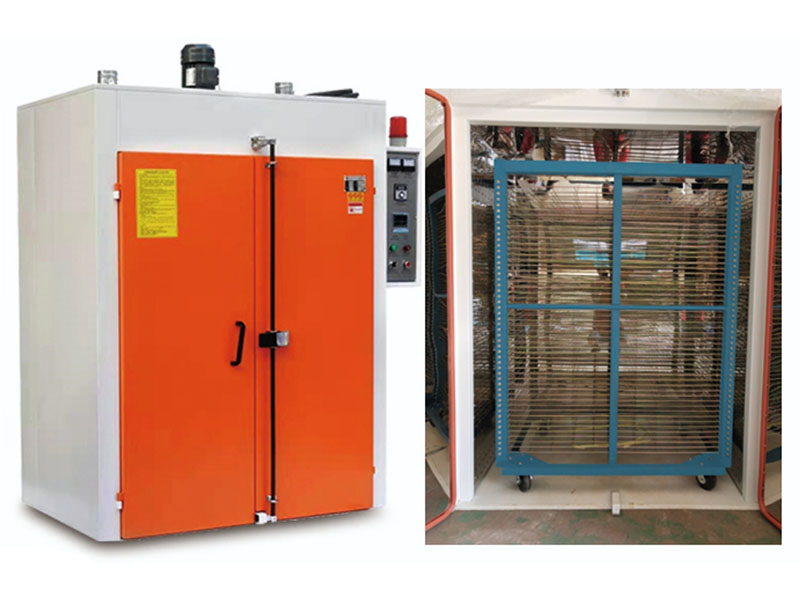

Parameters of wind-driven industrial oven
1. Temperature range: room temperature ~ 250℃ (normal use)
2. Heating time: heating to 150℃ ~ 10min;
3. Temperature uniformity: +5% (no-load test);
4. Protection device: PID self-tuning, automatic constant temperature, automatic timing, timed alarm power off after reaching the temperature, over-temperature power off, leakage protection, motor overload protection, etc. Control circuit fuses, non-fuse switches and other electrical accessories;
5. Adopt intelligent temperature control elements, PID automatic calculation, LED display, and relay output to accurately control the temperature accuracy;
6. The inner tank material is 1.0mm mirror 201# all stainless steel plate or galvanized plate, and the outer box is 1.2mm cold-rolled plate high-temperature powder paint;
7. Double over-temperature protection, safer and more reliable;
8. The oven air duct is designed according to the product characteristics, with good temperature uniformity;
9. The heating time is fast, the temperature is stable and accurate; it can be customized according to customer requirements;
Air-carrying industrial oven/box parameters
| Series Model | External Dimensions (mm) | Internal Dimensions (mm) | Voltage (V) | Power (Kw) | Temperature (℃) |
| JY55 | 1150*850*635 | 550*550*450 | 220 | 3 | 250 |
| JY80 | 1450*900*685 | 800*600*500 | 380 | 4.5 | 250 |
| JYX100 | 1660*900*685 | 1000*600*500 | 380 | 5 | 250 |
| JYD100 | 1660*1100*785 | 1000*800*600 | 380 | 6 | 250 |
| JYX120 | 1860*1100*785 | 1200*800*600 | 380 | 7.5 | 250 |
| JYD120 | 1900*1300*1000 | 1200*1000*800 | 380 | 9 | 250 |
| JYD160 | 2300*1800*1000 | 1600*1200*850 | 380 | 15 | 250 |

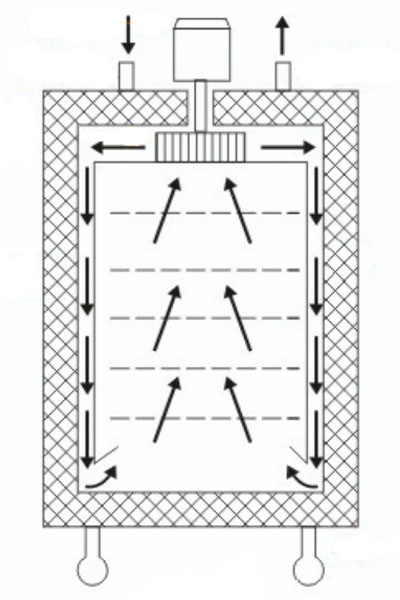

Optional wind flow schematics

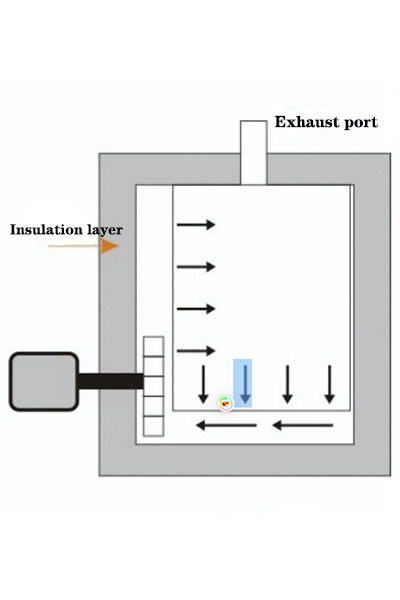

JYD160 horizontal air conveyor type
Sheet product baking, suitable for metal and film screen printing, leather processing
Need to customize the up and down air flow type
Suitable for baking smaller products such as toys and hardware parts paint

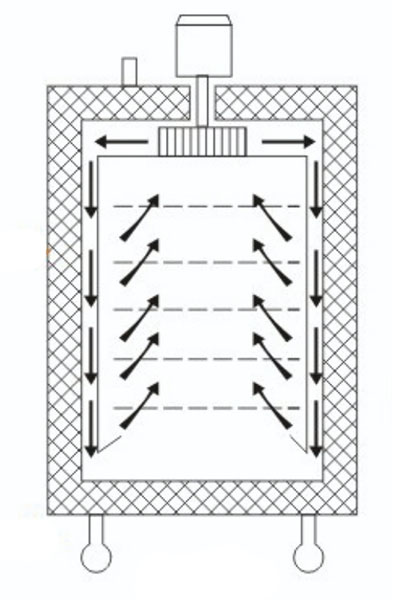

JY series up and down air flow and left and right air outlet
Dehydration and baking of larger products suitable for electroplating industry

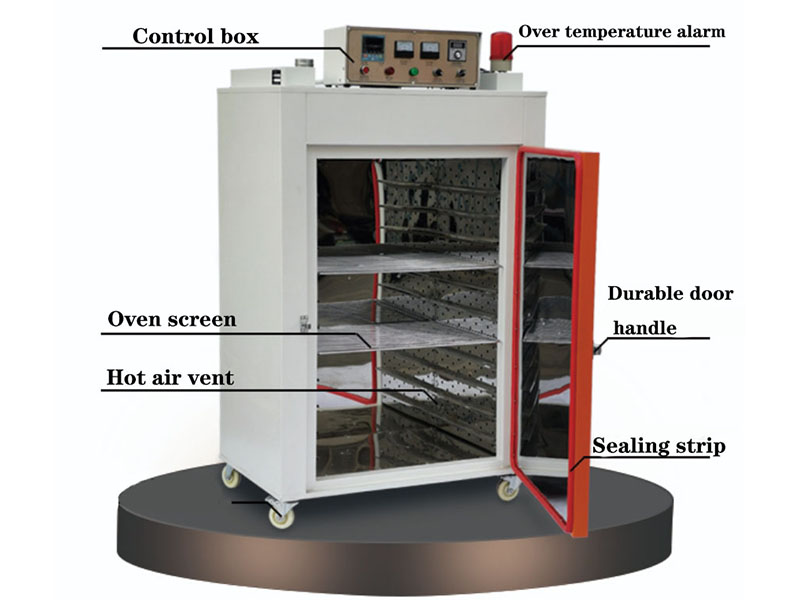

Furnace structure and materials
1. The inner box is made of 1.0mm galvanized sheet or 201 stainless steel mirror panel;
2. Insulation material: 80K environmentally friendly high-temperature cotton is used, and the insulation thickness is 80mm;
3. Door seal: high-temperature resistant silicone is used for tight sealing;
Wind control system
Wind motor: reinforced shaft type oven-specific high-temperature motor and powerful multi-wing wind wheel.
Safety system
1. Over-temperature protection (when over-temperature occurs, alarm is triggered and heating power is cut off)
2. Control circuit short circuit and overload protection, phase protection, leakage protection;
What is an Industrial Oven?
An industrial oven is a type of oven used for various heating processes in manufacturing. It gets its name from the fact that it is often used in industrial settings for processes like drying, curing, and baking. Industrial ovens are typically more robust and designed for higher throughput than standard ovens, and they are often used in demanding production environments.
Industrial ovens are often used in applications where precise temperature control and uniformity are critical for achieving desired results. Industrial ovens come in a variety of styles, including batch ovens, conveyor ovens, and cabinet ovens.
Industrial ovens offer many benefits over standard ovens or heating methods. They provide consistent and controlled heating, ensure uniform temperature distribution, and are more efficient for large-scale production.
What to Consider When Choosing an Industrial Oven
Selecting an industrial oven for your manufacturing process requires careful consideration. For processes demanding consistent and controlled heating, investing in a high-quality industrial oven is crucial. These ovens are prized for their durability and adaptability across diverse applications. Key factors to weigh when choosing an industrial oven include:
Size and Configuration
Industrial ovens are available in various sizes and configurations, so select one suited to your production needs. If floor space is limited, consider a compact oven. For large-scale operations, a walk-in or tunnel oven might be necessary.
Temperature Range and Control
Assess the required temperature range for your processes. The oven must reach and maintain the necessary temperatures accurately. Precise temperature control ensures consistent results and prevents damage to products.
Energy Efficiency
Energy efficiency minimizes operational costs and environmental impact. Look for ovens with good insulation, efficient heating systems, and smart controls. These features reduce energy consumption and lower your carbon footprint.
Reliability and Maintenance
Choose ovens from reputable manufacturers known for reliable performance and robust construction. Inquire about warranty options and maintenance requirements. Easy maintenance ensures minimal downtime and extends the oven's lifespan.
Additional Features
Consider features like data logging, programmable controls, and custom options. These additions can enhance process control, traceability, and overall efficiency."
What are the benefits of Industrial Ovens?
Businesses of all types can benefit from adding an industrial oven to their setup. Looking for ways to improve your product or service? Consider choosing an industrial oven, which is quickly becoming the go-to choice in many manufacturing processes. It’s perfect for heating, drying, or curing materials, making it an ideal solution for any business. Businesses of all types can benefit from adding an industrial oven to their setup. Looking for ways to improve your product or service? Consider choosing an industrial oven, which is quickly becoming the go-to choice in many manufacturing processes. It’s perfect for heating, drying, or curing materials, making it an ideal solution for any business.
Improve Production Efficiency
Elekheat’s industrial ovens achieve optimal heat distribution and temperature control through advanced design and top-notch components. Consistent temperatures are maintained throughout the chamber, leading to faster and more uniform processing of materials. In short, our innovative ovens offer tremendous gains in production efficiency.
Simple Operation
Elekheat industrial ovens are made with intuitive operation and maintenance in mind. Featuring user-friendly controls and readily accessible components, they are easy to operate and service. This ease of use allows users to integrate their ovens seamlessly into existing workflows.
Space Saving
Elekheat ovens offer an advantage in terms of space utilization due to their optimized design. Available in a range of sizes and configurations, including vertical and horizontal models, our ovens can be tailored to fit specific space requirements. As a result, businesses can maximize their production capacity without sacrificing valuable floor space.
Why Are Elekheat Industrial Ovens So Reliable?
Robust Construction: We start with a foundation of heavy-gauge steel, meticulously welded and assembled to withstand years of rigorous use. This rugged build minimizes warping, vibration, and potential damage from daily operations.
Premium Components: Elekheat ovens utilize only high-quality, industrial-grade components. From durable heating elements and precise temperature controllers to robust circulation fans and reliable door seals, every part is chosen for longevity and consistent performance.
Redundant Safety Systems: Downtime due to safety failures is unacceptable. That’s why Elekheat ovens incorporate multiple layers of safety mechanisms. Over-temperature protection, emergency shut-off systems, and door interlocks ensure safe and reliable operation, minimizing potential hazards and costly interruptions.
Precise Temperature Control: Consistent temperature is crucial for many industrial processes. Our advanced temperature control systems, often employing PID controllers and calibrated sensors, maintain exceptional temperature uniformity throughout the oven chamber. This precise control minimizes temperature fluctuations, leading to consistent and reliable processing results.
Thorough Testing and Quality Assurance: Before leaving our facility, each Elekheat oven undergoes rigorous testing and quality assurance procedures. We simulate real-world operating conditions to identify and address any potential weaknesses, ensuring that every oven meets our stringent standards for reliability and performance.
Get your Heating Solution
The Ultimate Guide to Industrial Ovens: Types, Applications, and Choosing the Right Solution
Discover everything you need to know about industrial ovens! Explore types, uses, selection criteria, and benefits of industrial ovens for your business. Optimize efficiency with ElekHeat’s expert insights.
Introduction to Industrial Ovens
Industrial ovens are the unsung heroes of modern manufacturing, enabling precision heating, curing, drying, and baking across industries like aerospace, food processing, automotive, and pharmaceuticals. At ElekHeat, we specialize in advanced electric industrial ovens built for energy efficiency and reliability. This guide will walk you through the essentials of industrial ovens, their types, key applications, and how to choose the perfect solution for your operational needs.
What is an Industrial Oven?
Industrial ovens are high-temperature heating systems designed for large-scale thermal processing. Unlike standard ovens, they handle extreme temperatures (up to 1,200°F+), uniform heat distribution, and complex workflows, making them ideal for tasks like:
- Curing coatings or composites
- Drying bulk materials
- Sterilizing medical equipment
- Baking food products at scale
Key Components
- Insulated chambers
- Heating elements (electric, gas, infrared)
- Ventilation systems
- Precision temperature controls
- Safety features (overheat protection, alarms)
Types of Industrial Ovens
1. Curing Ovens
- Use Case: Hardening paints, coatings, or adhesives.
- Industries: Automotive, aerospace.
- Key Feature: Consistent airflow to prevent defects.
2. Drying Ovens
- Use Case: Removing moisture from materials like ceramics or textiles.
- Industries: Construction, pharmaceuticals.
- Key Feature: Low-temperature precision.
3. Baking Ovens
- Use Case: Mass production of food items or curing rubber.
- Industries: Food processing, manufacturing.
4. Batch vs. Conveyor Ovens
- Batch Ovens: Ideal for small-batch or custom processes.
- Conveyor Ovens: Enable continuous production lines (e.g., electronics manufacturing).
Applications Across Industries
- Aerospace: Curing composite materials for aircraft.
- Food Production: Baking, dehydrating, or pasteurizing.
- Automotive: Drying automotive coatings efficiently.
- Pharmaceuticals: Sterilizing equipment under strict safety protocols.
How to Choose the Right Industrial Oven
- Temperature Range: Match oven capabilities to your process (e.g., 300°F for drying vs. 900°F for curing).
- Size & Capacity: Ensure the chamber accommodates your largest components.
- Heating Source: Electric ovens (like ElekHeat’s) offer precise control and eco-friendly operation.
- Compliance: Meet industry standards (e.g., OSHA, NSF).
- Customization: Look for add-ons like data logging or programmable controls.
Why Choose Electric Industrial Ovens?
Electric ovens dominate modern industries due to:
- Energy Efficiency: Lower operational costs vs. gas models.
- Precision: Digital controls for ±1°F accuracy.
- Safety: No combustion risks or emissions.
- Sustainability: Reduced carbon footprint.
Maintenance & Safety Best Practices
- Routine Inspections: Check heating elements and insulation.
- Calibration: Ensure temperature sensors are accurate.
- Ventilation: Prevent overheating with proper airflow.
- Safety Protocols: Train staff on emergency shutoff procedures.
Future Trends in Industrial Ovens
- Smart Ovens: IoT-enabled monitoring for predictive maintenance.
- Energy Recovery Systems: Reusing waste heat to cut costs.
- Advanced Materials: Lightweight insulation for faster heating.
FAQs
Q: What’s the average lifespan of an industrial oven?
A: 10–15 years with proper maintenance.
Q: Are electric ovens suitable for high-temperature tasks?
A: Yes! ElekHeat’s models handle up to 1,200°F efficiently.
Conclusion
Industrial ovens are critical to achieving consistent, high-quality outputs in manufacturing. By understanding the types, applications, and selection criteria, you can invest in a solution that boosts productivity and ROI. At ElekHeat, we engineer custom electric industrial ovens tailored to your industry’s demands—partner with us to future-proof your thermal processes.
