What is a washing machine heating element
A washing machine heater is a built-in heating element that raises the temperature of water during a wash cycle. By allowing the use of hot water, it ensures effective cleaning, especially for removing stains, grease, and bacteria.

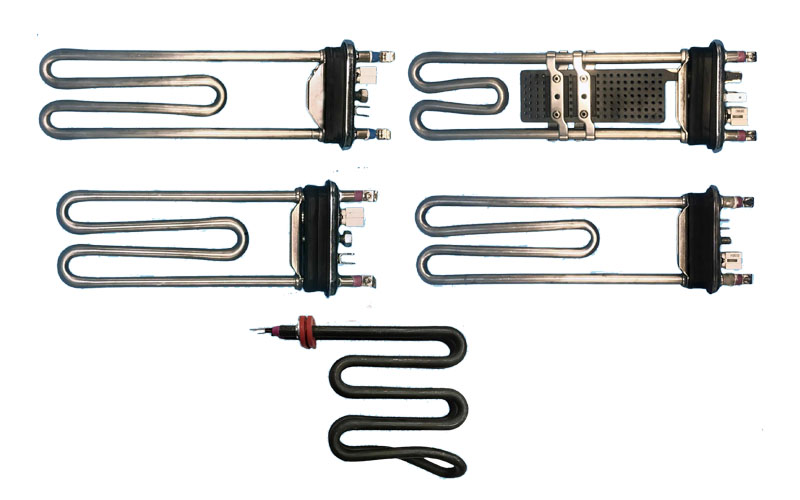

ELEKHEAT Washing Machine Heater Information
| Form | Tubular Heating Element | Shape | Tubular |
| Voltage | Power(W) Customized Density | Wattage | Customized |
| Max Wattages | 15W/Cm2 | Density | High/Low |
| Insulation Material | High Purity MGO Powder | Current Leakage | Less Then 0.5mA |
| Sheath Material | SUS304, SUS321, SUS316L, Incoloy804, Incoloy800 | Tube Diameter | 8.5mm or Customized |
| Resistance Wire | Ocr25al5 or Ni80cr20 | Usage | Platen Washing Machine |
| Thermostat | with or Without, Customized | Transport Package | According to Customer′s Requirements |
| Specification | customized | Trademark | ELEKHEAT |
| Origin | China | HS Code | 85168000 |
| Production Capacity | 1000000PCS/Year |
Suitable for washing machines
Top-Load Washing Machines
Front-Load Washing Machines
Semi-Automatic Washing Machines
Fully Automatic Washing Machines
Heater manufacturing process
Certificate of Certification
ELEKHEAT Laundry Hose Heaters – Precision Heating for Optimal Performance
ELEKHEAT’s laundry hose heaters are engineered to provide efficient, uniform, and reliable heating for washing machines and industrial laundry applications. Designed for durability and energy efficiency, our heaters ensure optimal water temperature regulation, enhancing washing performance while reducing energy consumption.
Key Features:
✅ High-Quality Heating Elements – Manufactured with premium stainless steel or copper for excellent corrosion resistance and long service life.
✅ Uniform Heat Distribution – Ensures consistent water temperature for improved detergent activation and stain removal.
✅ Customizable Specifications – Available in various lengths, wattages, and voltage options to fit different laundry system requirements.
✅ Fast Heating Efficiency – Designed for rapid water heating, reducing washing cycle time and increasing energy savings.
✅ Safe and Reliable Operation – Equipped with thermal protection to prevent overheating and ensure user safety.
✅ Compatibility – Suitable for residential and commercial washing machines, as well as industrial laundry equipment.
ELEKHEAT provides OEM & ODM customization to meet your specific laundry heating needs. Contact us today to find the perfect heating solution for your application! 🔥
How It Works
Activation: When a hot water wash is selected, the machine heater turns on.
Heating Process: It uses electrical resistance to generate heat, warming up the water inside the drum or water chamber.
Temperature Control: A thermostat regulates the temperature to ensure it stays within the selected range.
Washing & Rinsing: The heated water improves detergent efficiency and enhances stain removal.
Types of Washing Machine Heaters
Tubular Heating Elements (most common, made of stainless steel or Incoloy)
Ceramic Heating Elements (resistant to limescale, energy-efficient)
Infrared or Quartz Heaters (faster heating, less common)
Heat Pump Heaters (used in energy-saving models)
Common Problems & Maintenance
Limescale Buildup: Hard water can cause scaling, reducing efficiency. Regular descaling is recommended.
Burnout or Damage: Overuse or power surges can lead to heater failure, requiring replacement.
Faulty Thermostat: If water doesn’t heat properly, the thermostat or heater may need repair.
